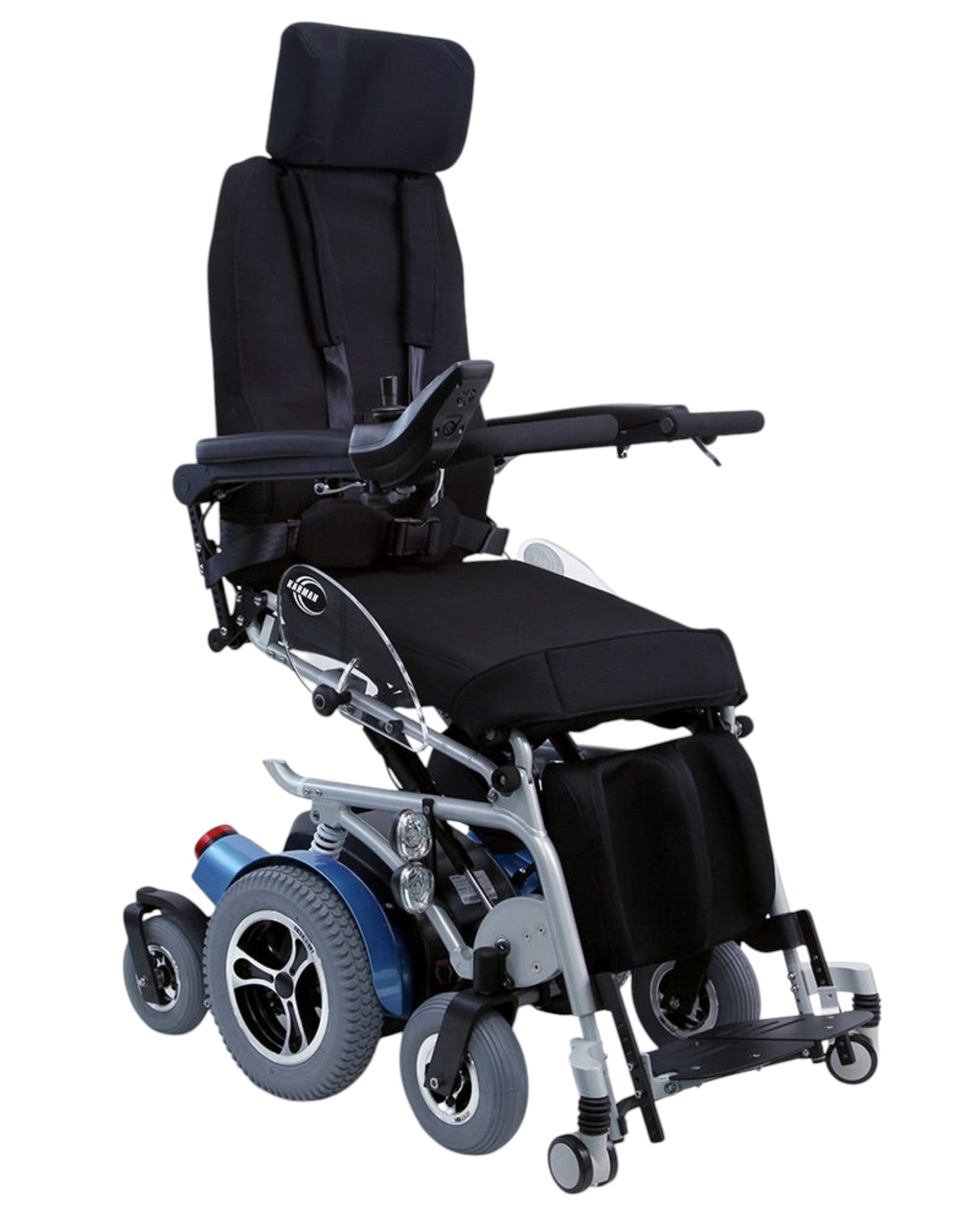

Karman XO-505 Power Standing Wheelchair
The Karman Healthcare presents the ultimate standing mobility device for your mobility needs. This stand-up wheelchair is not your typical standing chair; it is the complete package when it comes to power chairs.
The Karman XO-505 chair features a clean and easy-to-manage frame design. Comes with an LCD display for full control of the unit and all its features.

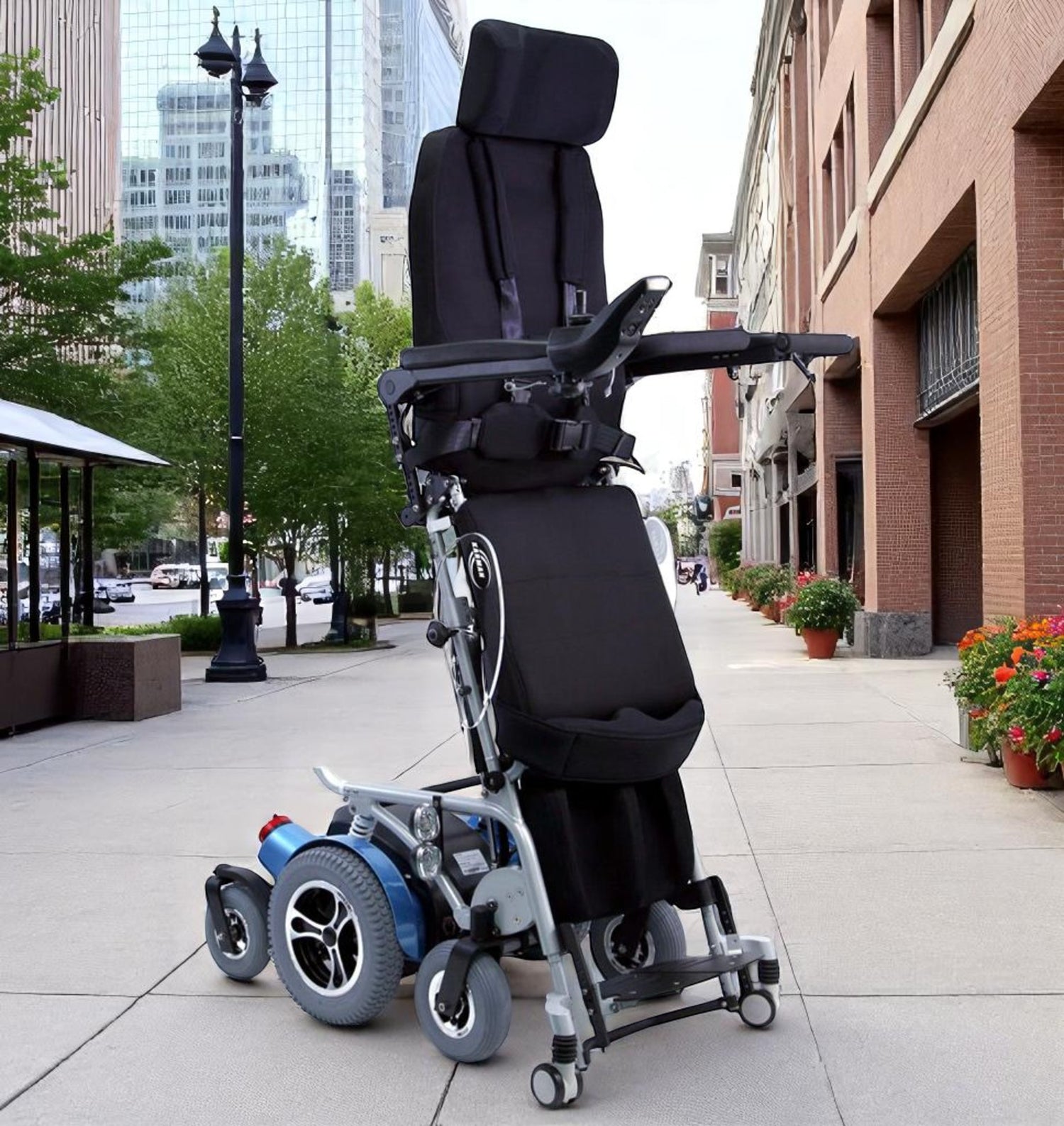

This stand-up power wheelchair is ideal for both indoor and outdoor use. Its mid-wheel drive provides an enhanced center of gravity, while the front and rear wheels ensure excellent balance for the user on varying surfaces.
The Karman XO-505 comes standard with a mid-wheel drive, full sit-to-stand power function, power tilting and reclining feature, a full control display, ergonomic leg rest support cushion, extendable arm support, full support harness, and a new power hydraulic system.
When it comes to standing mobility devices, the XO-505 stands out from the competition.
Key Specs
- Weight capacity: 250 lbs
- Drive Range per charge: 25 miles
- Full-size frontal food tray (optional accessory)
- Seat-cushion mounting-frame width: 16 1/8″ (designed to rest above the frame)
- Overall frame width: 18″ (rear inside width: 16 1/8″)
Features
- 6061 T-6 aircraft-grade aluminum frame
- Full-control LCD display
- Full leg-rest support cushion
- Extendable arm/hand support bars on both sides
- H-style chest harness
- New powered hydraulic system
- Easy-to-use joystick for both drive and stand functions
- USB support for mobile devices (optional)
- Rear caster wheels

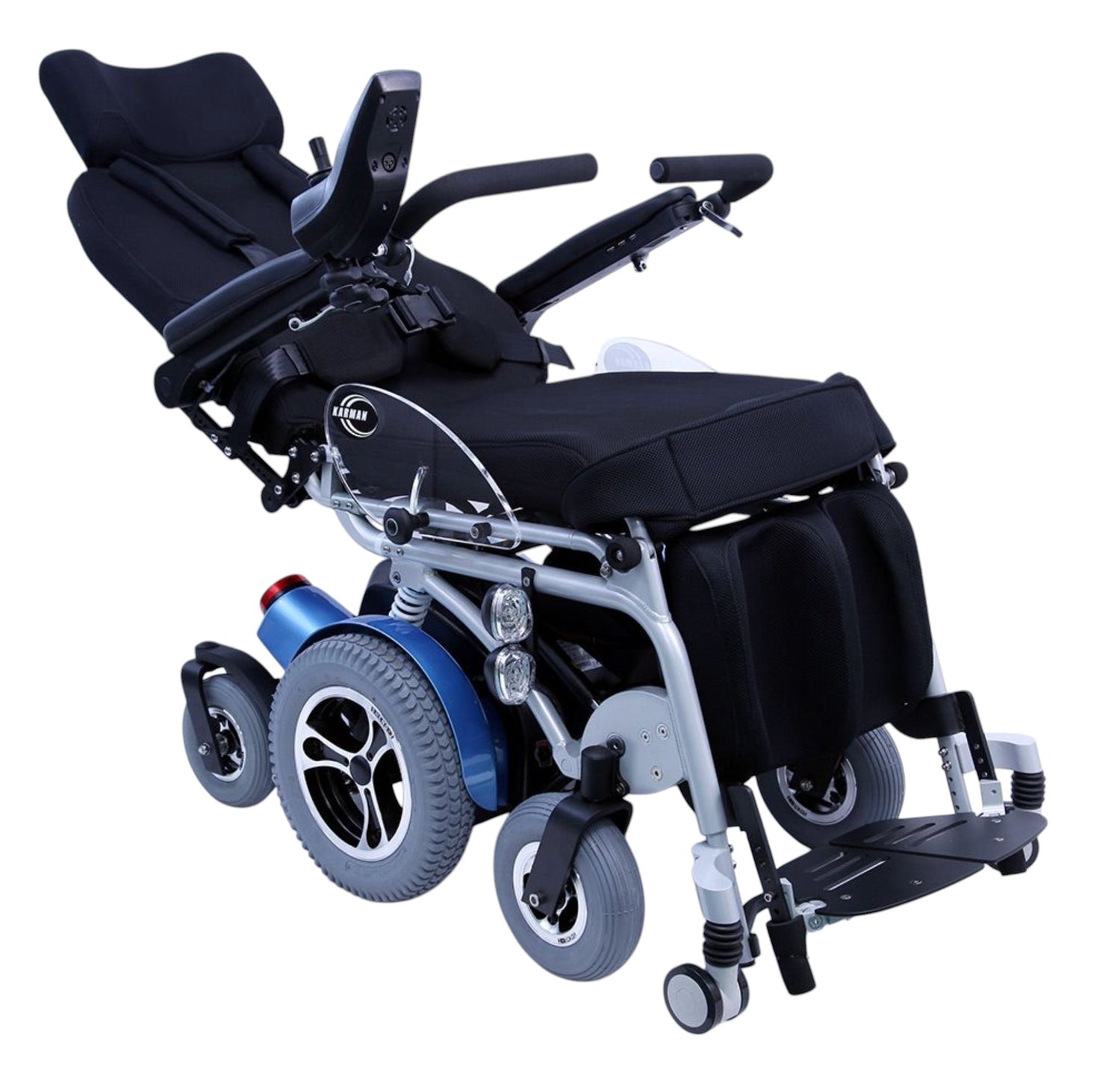

- Power-reclining feature
- Power-tilting feature
- Mid-wheel-drive configuration

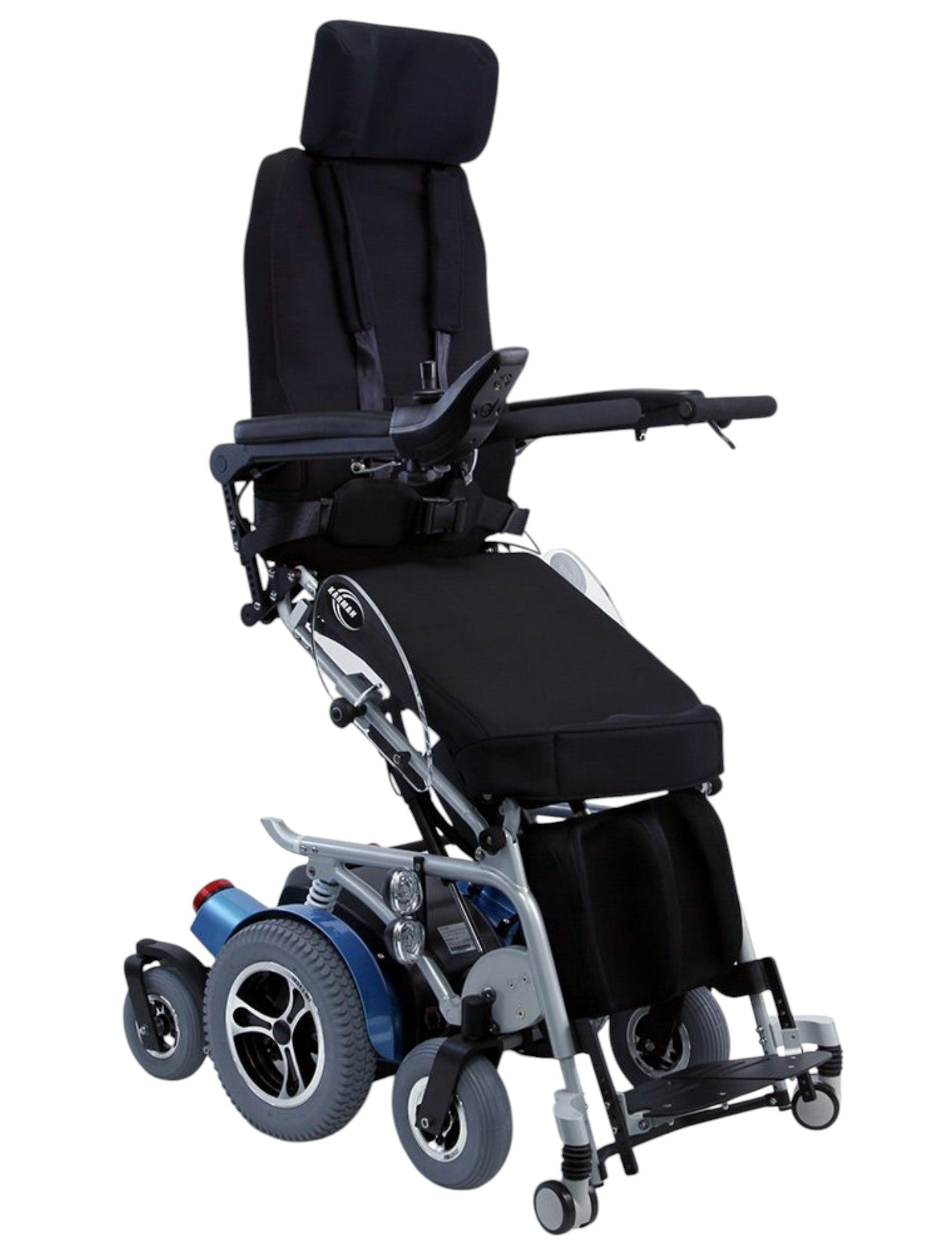

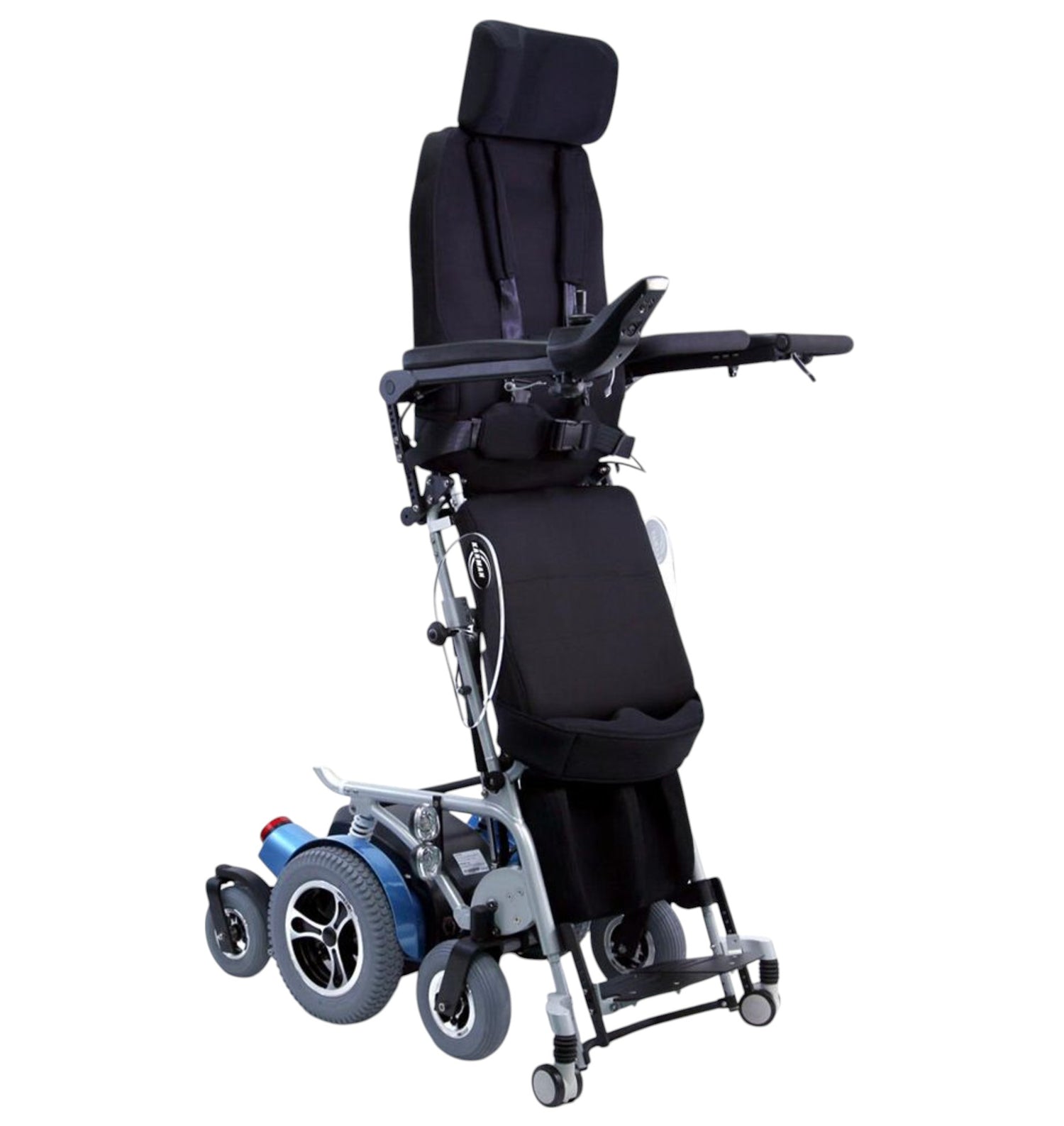

- Full sit-to-stand power function
Specifications
| Weight Capacity | 250 lbs. |
| Product Weight | 180 lbs. |
| Heaviest Piece | 155 lbs. |
| Seat Width | 18″ |
| Seat Depth | 18″ – 20″ |
| Seat-to-Floor Height | 23″ |
| Overall Width | 28″ |
| Overall Length | 45″ |
| Overall Height | 46.5″ |
| Frame Color | Blue |
| Ground Clearance | 2″ |
| Turning Radius | 25″ |
| Max Speed | 5 mph |
| Driving Range | 25 miles |
| Battery Weight | 68 lbs. |
| Box Length | 48″ |
| Box Width | 40″ |
| Box Height | 52″ |
Warranty
Warranty on Frame: 1 year
Warranty on Wearable Parts: 6 months limited
Warranty on Batteries: 3 months limited
